Welcome to XINSENYUE website

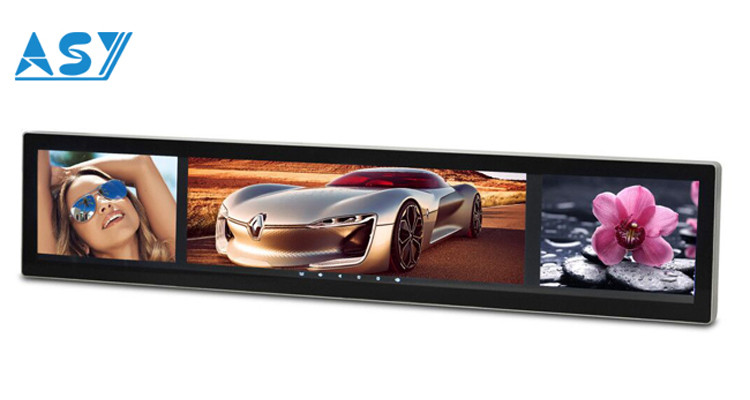

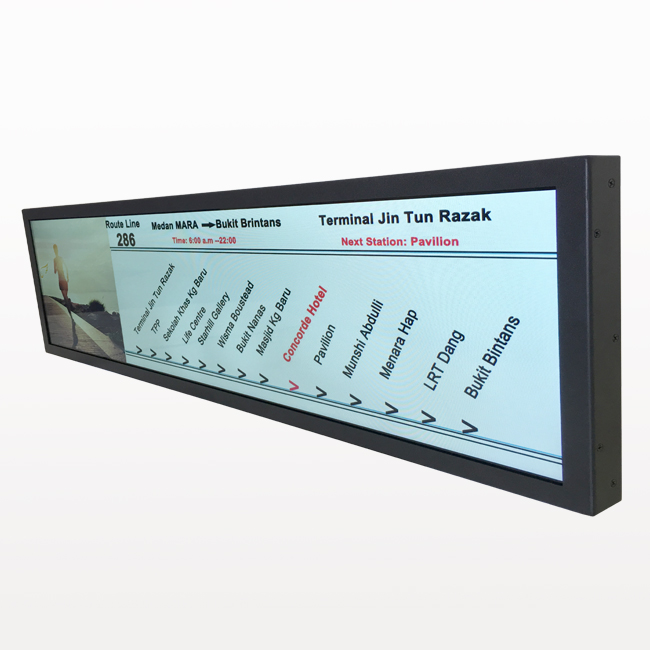

| Product Name: | Widest Range Bar Type LCD Video Advertising Display |
| Model: | XSY286LV01 |
| Brand: | XINSENYUE |
| Type: | Stretched Bar LCD |
| Resolution: | 1920x540 |
| Size: | 28.6 inch |
What Is Advantage Stretched Display?
The mainstream aspect ratio of the TFT LCD panel in the market is 4:3 or 16:9. But for some applications, bar type shape of display panel would be much better than the current mainstream 4:3 or 16:9 to display the required information. Bar Type TFT-LCD displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display.
Space-saving & multimedia interface control
The stretched lcd installed in the bus, train, subway, mounting on the side; under the vehicle roof, It reduce the effects for the drivers and avoid the direction eye catch from passengers. It is the perfect displayer.
Product Details
| Item | XSY286LV01 | Resolution | 1920*540 |
| Screen Size | 28.6 inch | Suggest resolution | 1920*540 |
| Dot pitch | 0.36mm | Display area dimension | 698.4x196.4mm |
| Luminance(nits) | 500 | Module size(W*H*D) | 735x236x58mm |
| Contrast Ratio | 3000:1 | Weight(kg) | 5.5 |
| Response Time(ms) | 8 | Operation temperature( ℃) | -20~60 |
| Display colors | 16.7M | Operation humidity | 10%~90% |
| Viewing Angle:θT/θB/θL/θRV | 85/85/85/85 | Voltage(V) | DC 9~30 |
| Operating system | Android | Power(W) | 40 |

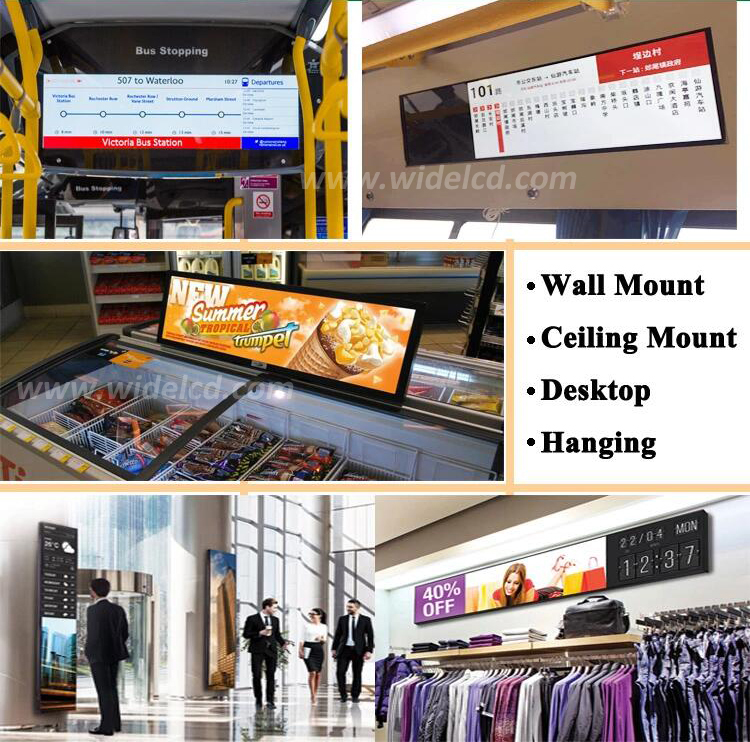

Application:
How to Use:
Related Product.
Why choose XINSENYUE technology
1>. We are verified supplier certified by Independent Third Parties.
2>. More than 10 years of LCD industry experience.
3>. We design, produce ourself, support ODM/OEM server
4>. ISO9001, CE, FCC, RoHS certificate permitted.
