Product Name: | Outdoor flexible transparent led display panel adhesive transparent film screen on glass window |
Product name: | transparent led screen |
Pixel pitch: | 3.91 |
Brightness: | 500-4000cd/m2 |
Viewing angle: | Horizontal 140°, vertical140° |
Operating system: | Novastar/ Colorlight /Linsn |
Outdoor flexible transparent led display panel adhesive transparent film screen on glass window
What Is Adhesive Transparent LED Display?
The adhesive transparent led display is a excellent product that breaks the conventional LED display. Light, thin, transparent, and easy to install are the big trends in displays. The fiexible transparent led screen produced by our company uses a specific bare chip, and the components are fixed on a high-transparency PCB board. Through a unique cover glue process, the display module integrates a high-transparency luminous display substrate with a minimum thickness of 3~8mm.
Features of the adhesive transparent led display:
1. Practicality: The adhesive led transparent film screen on glass customization is perfectly combined with the glass curtain wall, and it is customized according to the size of the glass to achieve the perfect combination of technology and fashion without affecting the light transmittance of the glass curtain wall;
2. Invisible display: The light-emitting chip adopts a micron-level light-emitting source, and is protected by a transparent, high-temperature-resistant, anti-static and waterproof film agent, without the need for a cabinet.
3. Ultra-thin and ultra-light: the thickness of the film screen is 3-8 mm, and the weight is only 10kg/ m2
4. High transmittance: the light source of the glass led display can reach a maximum transmittance of 60%, which does not affect daily lighting;

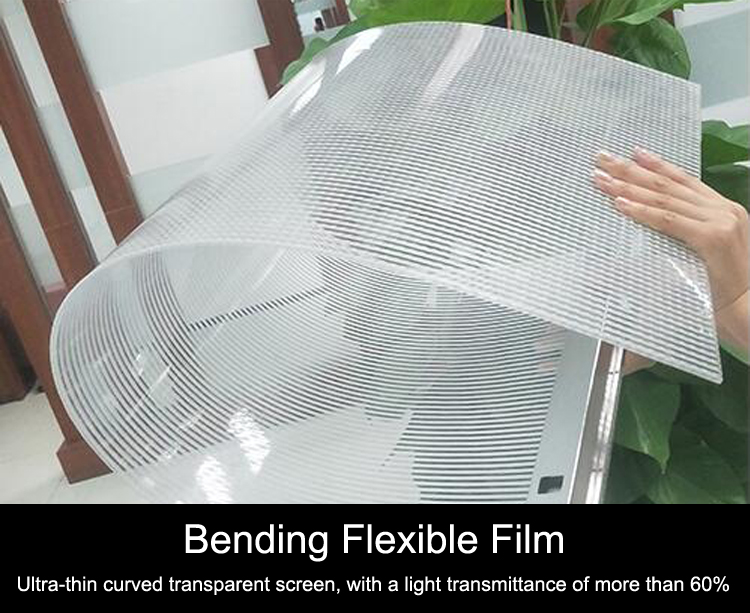

5. Bendable: Transparent Led Film Screen Adhesive Flexible, strong flexibility, can be attached to glass/wall of any arc;
6. Large viewing angle: transparent led display is up to 160 degrees up and down, left and right, no dead angle, no color cast.
7. Easy installation: no steel frame structure is required, just stick the film screen, and then connect the signal and power supply.

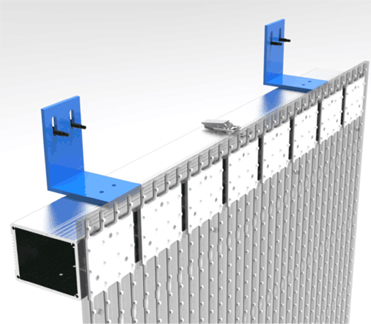

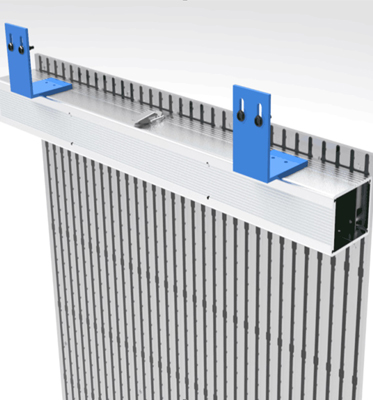

How to install the transparent led display?
1. Please clean and dry the glass surface before installation.
2. Mark the outside line of the screen installation area.
3. Test the cabinet and remove the protective tape.
4. Attach the screen to the glass along the mark.
5. Fix the screen with the attached firmware.

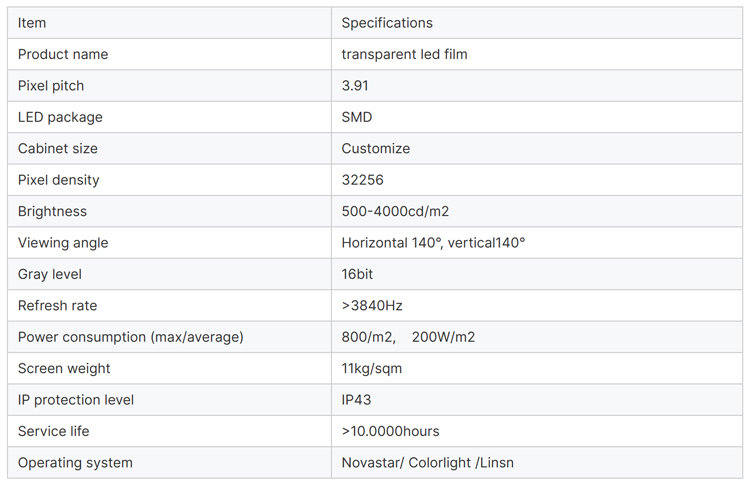

Product Paramenters

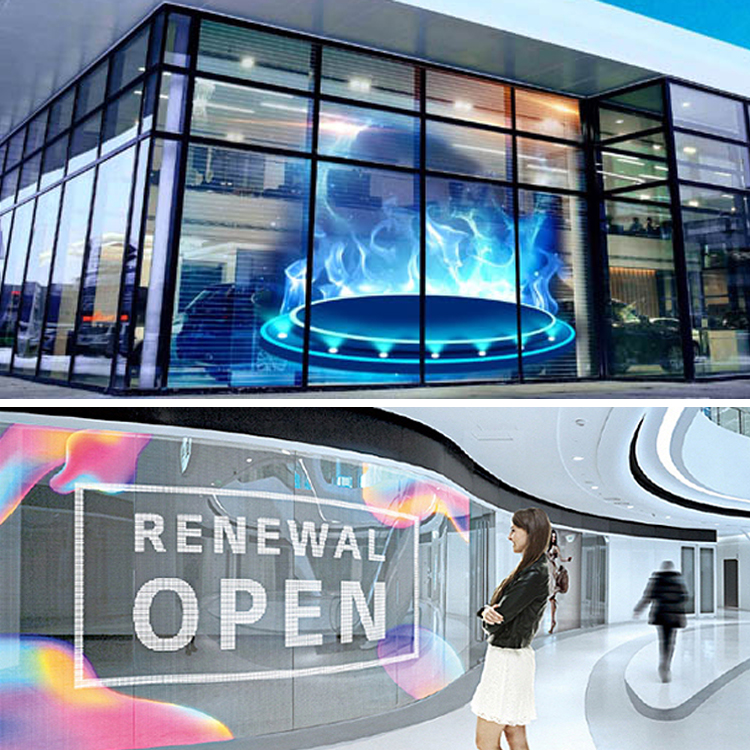

Application
Trade terms and Payment
* Trade terms: CIF, FOB, EXW etc
* Payment term: Alibaba order , T/T, West Union, Paypal, Cash
* Payment condition: 30% deposit, 70% balance before delivery
* Package: Netural carton, wooden box and flight case
* Shipping: By sea, by air and by express(DHL, UPS, Fedex etc)
After-sales service
1. Free online technical training and support for installation
2. Free spare parts if the screen broken because of quality issues .
3. 24/7 online service for any inquiry and question
