PRODUCTS

Product Name:	Reliable Quality Bar LCD Ultra Wide Display
Screen Type:	TFT LCD panels

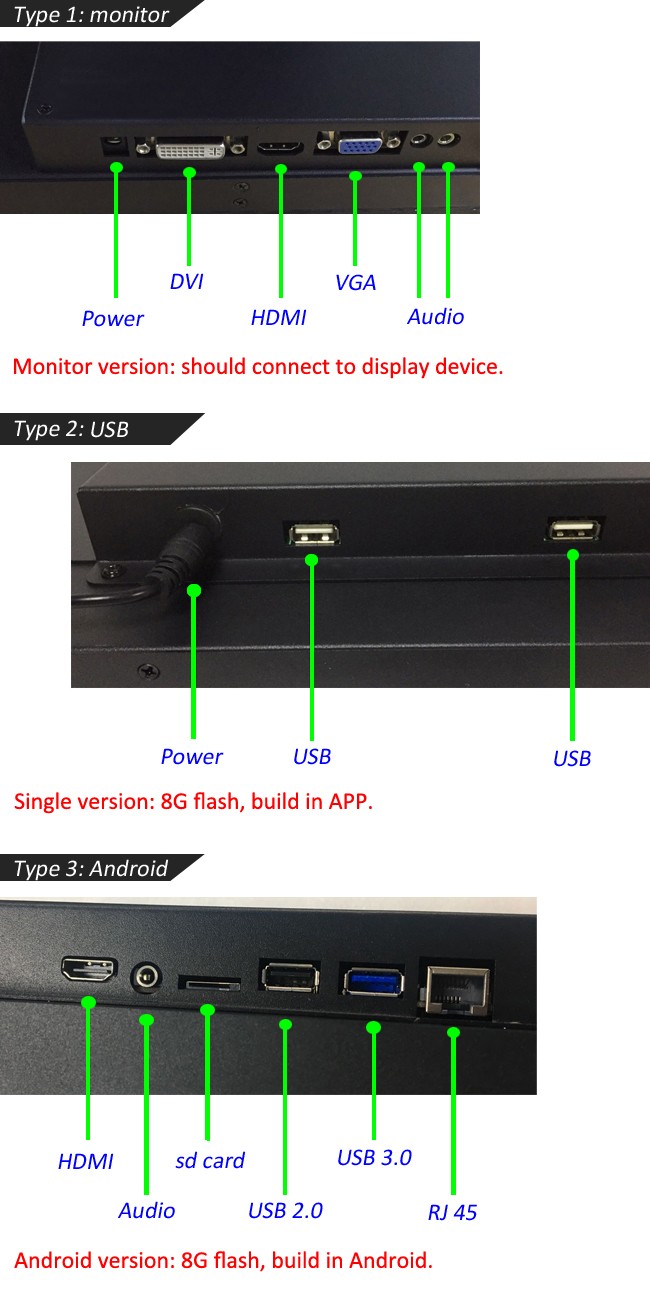

Control Port:	HDMI/DVI/USB/RJ45
Application:	Bus, Rapid , Metro
Resolution:	1920x540
Size:	28.6 inch

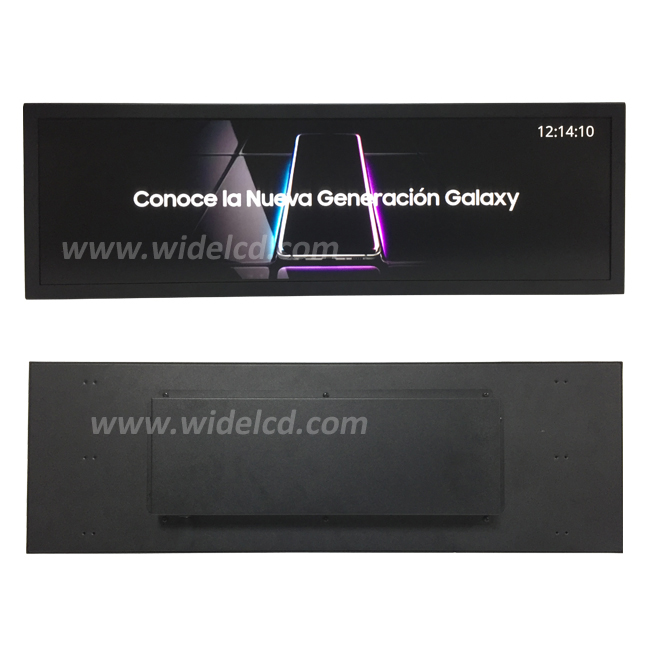

Reliable Quality Bar LCD Ultra Wide Display

What Is Advantage Stretched Display?

The mainstream aspect ratio of the TFT LCD panel in the market is 4:3 or 16:9. But for some applications, bar type shape of display panel would be much better than the current mainstream 4:3 or 16:9 to display the required information. Bar Type TFT-LCD displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display.

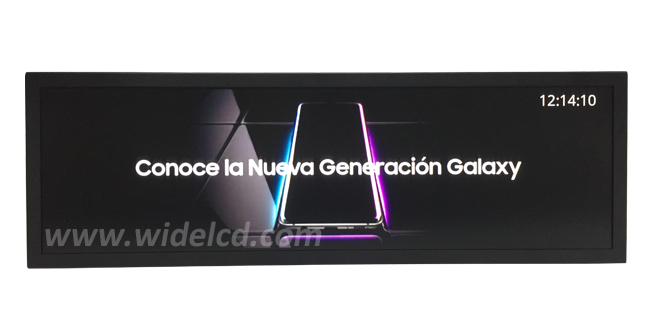

bar lcd_ 0016.jpg

Product Details:

Item	XSY286LV01
Screen Size	28.6 inch (Size customized)
Luminance(cd/m2)	450
Response Time(ms)	8
Display colors	16.7M
Viewing Angle:θT/θB/θL/θRV	85/85/85/85
Operating system (selectable)	Android
Resolution	1920*540
Display area dimension	698.4x196.4mm
Module size(WHD)	735x236x58mm
Weight(kg)	4.5
Operation temperature( ℃)	-20~60
Operation humidity	10%~90%
Voltage(V)	DC 9~30
Power(W)	40
