Welcome to XINSENYUE website
| Product Name: | On-train DVI input TFT LCD passenger information display |
| Media connector: | DVI, HDMI, VGA |
| Type: | TFT LCD Panel |
| Display Color: | 1080P |
| Resolution: | 1920x358 |
| Contrast: | 1000:1 |
Product Model: FHD-280
Brand: XINSENYUE
Product Feature:
Stretched bar LCD display designed
Specially installed on Bus, Train, Subway etc. Public Transport router board
Nickname: Passenger information System LCD monitor
Multi-media interface: HDMI, DVI, VGA, USB, RS485,RS232, RJ45 , SD card slot optional
Tempered glass 3mm thickness bezel front vendal proof, dust-proof and waterproof.
Horizontally or vertically display support.
Support customize control port, size, business LOGO and brightness.
Specification:
| LCD Screen Spec. | |
| Screen Size | 28 Inch |
| Screen Type | TFT display monitor |
| LCD brand | use LG brand LCD panel |
| LCD Structure | Ultra-wide Stretched Bar Shape |
| Active Areas (H*V) | 698.4 x 131.8 mm |
| Outline Dimesion (H*V*D) | 734.4 x 161.8 x 38 mm |
| View Angle | 178/178 |
| Response Time | 8ms |
| Contrast | 1000:1 |
| Resolution | 1920x362 |
| Aspect Ratio | 16:3 |
| LED backlight | W LED |
| Brightness | 400 to 1000cd/㎡ |
| Working Environment | |
| Working Temperature | -10℃ to 60℃ |
| Working Humidity | -10%RH to 90%RH |
| Power Supply | DC 12V or 24V (9V to 36V) |
| Power Consumption | 58W |
| Public Transport Application | Electric bus, new bus, commerical bus, automative mobile, train, subway, tram, railway |
| Storage Temperature | 0℃ to 60℃ |
Detail Pictures:

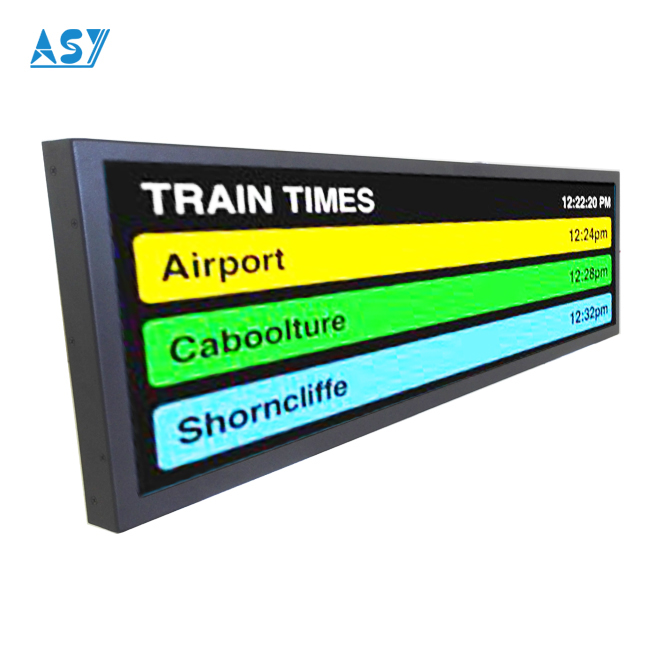

28 Inch ultra wide lcd display size ,reference to 28.6 Inch size, cutting from 1/2 32" LCD panels.
28.6" ultra wide lcd display is widely installed on Electric Bus, New commerical bus and subways. As the suitable and comfortable widescreen view for passengers and audience onboard.
Android Advertising 1920x540 Stretched Monitor Displays optional function for customers. More function like WiFi, Bluetooth, 4G , language, printing, software upgrade setting as customer requirements and expectations.
Structure of stretched display multi media signal input interface,support two USB, hdmi, audio port, DVI, VGA,RJ45 etc. Display video and digital route map format can customized or programmed by per customer own CMS software.
Passenger information system stretched lcd display screen manily installed on the vehicles especially mass transit onboard.
Why Choose Us
Xinsenyue is strong ultra-wide LCD monitor manufacturer with full customized pieces stable senior partner.
With quality imported CNC metal accuracy cutting machine and TFT-LCD panel aging testing equipment and dustproof room.
Experienced engineer offer help bar LCD technology,signal input,connection software and installation.
12-month warranty for quality.
Customized size, color, control port as per customer projects.
Related Products:
.Shelf edge digital display
.Android advertising display
Question Help:
Q: What's your Ultra-wide LCD Panel Brand?
A: LG/BOE/CHIMEI , Mainly imported LG TFT LCD screen display
Q: What size you can customize?
A: All stretched LCD cutting resizing from regular size LCD panel. Usually cutting 1/3, 2/3, 1/2 size of 21.5", 32", 43", 65".
Q: What is your MOQ?
A: Our minimum order is 1 Piece
Q: What is your package?
A: EPE foam, carton box and wooden pallet.
Q: Can you make touch function ultra wide stretch lcd display?
A: Yes. We have experienced to export USA market.
Q: What is your warranty?
A: One year for quality insurance after approaching.
Next Product:Railway Signalling Stretched Type Super Wide LCD Panel
