Welcome to XINSENYUE website
| Product Name: | Bus Multimedia TV Screen INFOtainment TFT Display |
| Color: | Black or White |
| Bezel Front: | Tempered Glass |
| Application: | City Bus, Public Bus |
| Warranty: | 1 years |
| Control Port: | VGA, DVI, HDMI, USB |
With the development of smart city, intelligent bus and dispatch system has been widely developed, especially launch LCD bar-type screen customization and application; it is widely used in buses, subways, trains, taxis and other public transport and electronic platforms systems.
Product Description
| Item | XSY286LV01 | Resolution | 1920*540 |
| Screen Size | 28.6 inch | Suggest resolution | 1920*540 |
| Dot pitch | 0.36mm | Display area dimension | 698.4x196.4mm |
| Luminance(nits) | 500 | Module size(W*H*D) | 735x236x58mm |
| Contrast Ratio | 3000:1 | Weight(kg) | 5.5 |
| Response Time(ms) | 8 | Operation temperature( ℃) | -20~60 |
| Display colors | 16.7M | Operation humidity | 10%~90% |
| Viewing Angle:θT/θB/θL/θRV | 85/85/85/85 | Voltage(V) | DC 9~30 |
| Operating system | Android | Power(W) | 40 |

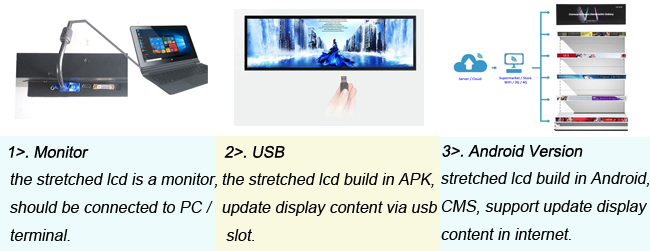

How to use the stretched bar lcd?
There are 3 types of connector interface:
1>. Monitor: HDM1 / VGA
2>. USB
3>. Android: HDM1 / USB / RJ45 / WIFI
Why choose XINSENYUE technology
1>. We are verified supplier certified by Independent Third Parties.
2>. More than 10 years of LCD industry experience.
3>. We design, produce ourself, support ODM/OEM server
4>. ISO9001, CE, FCC, RoHS certificate permitted.
