Welcome to XINSENYUE website
| Product Name: | Advertising Digital Display Cheap Stretched LCD |
| Type: | Digital Screen |
| Brightness: | 450cd/m2 |
| MOQ: | 1 Piece |
| Panel brand: | 100% A+ Grade BOE or AUOPanel |
| Package: | 1 PCS/Carton |

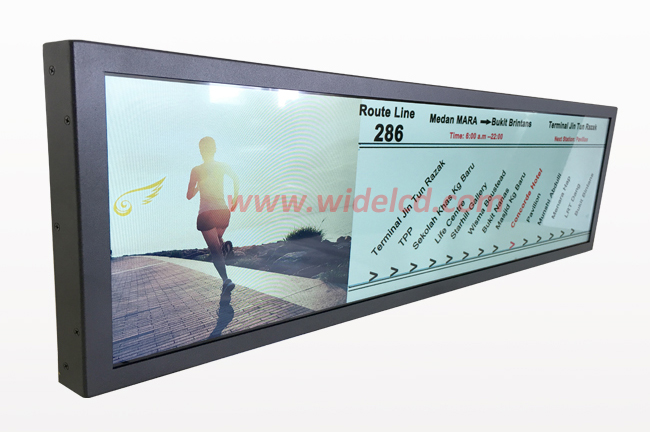

Advertising Digital Display Cheap Stretched LCD
Wide lcd monitor is an innovative ultra-wide, sunlight readable, LED backlight LCD display. it provides LCD panel with specific ratios for digital signage, public transportation, exhibition hall, department store, vending machine and industrial applications.
Incorporating with A.D. control board and backlight design, it is high brightness and sunlight readable panel, can display high-quality video with energy-efficient.
Product Details
| Item | XSY286LV01 | Resolution | 1920*540 |
| Screen Size | 28.6 inch | Suggest resolution | 1920*540 |
| Dot pitch | 0.36mm | Display area dimension | 698.4x196.4mm |
| Luminance(nits) | 500 | Module size(W*H*D) | 735x236x58mm |
| Contrast Ratio | 3000:1 | Weight(kg) | 5.5 |
| Response Time(ms) | 8 | Operation temperature( ℃) | -20~60 |
| Display colors | 16.7M | Operation humidity | 10%~90% |
| Viewing Angle:θT/θB/θL/θRV | 85/85/85/85 | Voltage(V) | DC 9~30 |
| Operating system | Android | Power(W) | 40 |

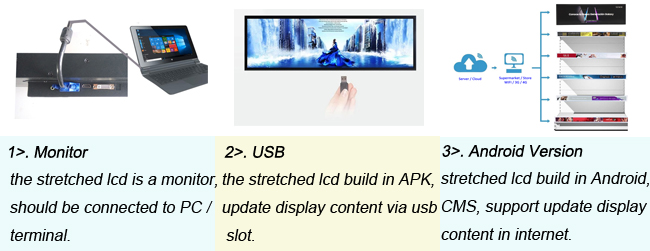

How to use the stretched bar lcd?
There are 3 types of connector interface:
1>. Monitor: HDM1 / VGA
2>. USB
3>. Android: HDM1 / USB / RJ45 / WIFI

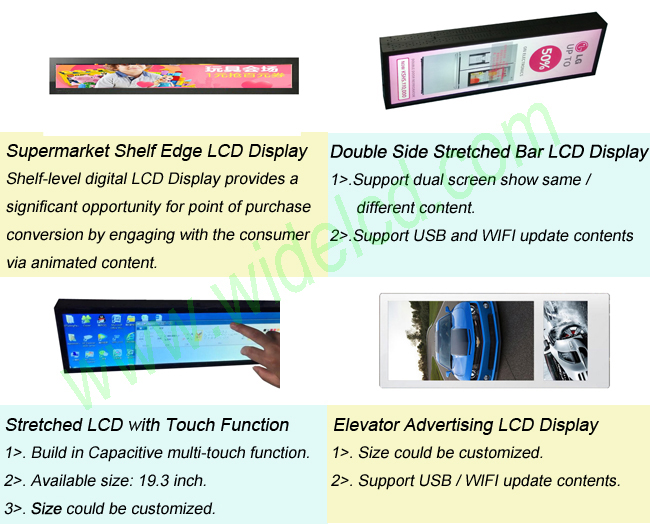

Application
Recommend Products
Why choose XINSENYUE technology
1>. We are verified supplier certified by Independent Third Parties.
2>. More than 10 years of LCD industry experience.
3>. We design, produce ourself, support ODM/OEM server
4>. ISO9001, CE, FCC, RoHS certificate permitted.
Next Product: Special Cut Ultra Wide Stretched Display 1920*540
