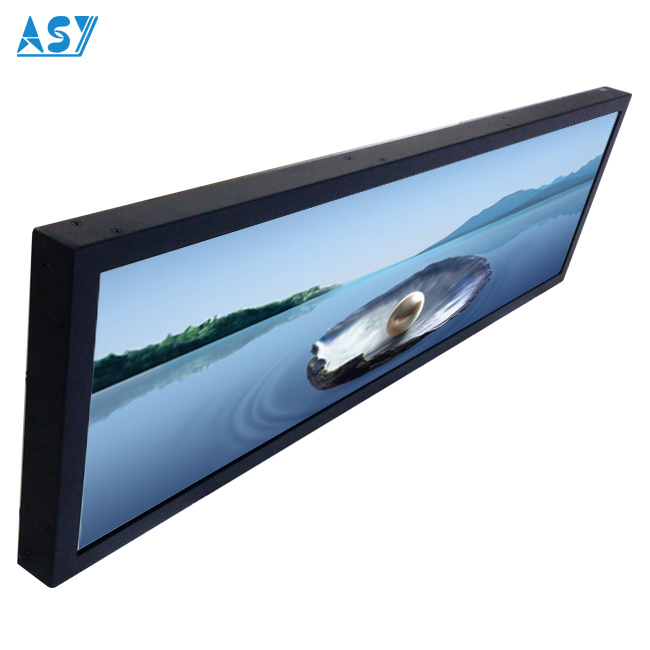

Product Name: | 28 Inch Bus HDMI Input Wide Stretched LCD Display |
Resolution: | 1920x540 |
Size: | 28 |
Display Format: | Landscape/portrait |
Brightness: | 400 to 1000 nits |
Customize: | Support |
Features
CE certificate
High Contrast ratio, High Luminance
Wide viewing angle: 178/178
1920x540 pixels resolution (16:4,5)
Direct LED Backlight
DE (data enable) mode
Multi Channel single board (low voltage differential signaling) interface
Landscape/ Portrait type compatible
Black/white/beige color option
General Information
Item | Specification | Unit | Note |
Module Size | 732.4(H) X 220.6(V) | mm | Typ |
28 Inch | |||
Weight | 5500 | g | Typ |
Active Display Area | 698.4(H) X 191.6(V) | ||
Surface Treatment | Haze 25% | Anti Glare POL | |
Display Colors | 8 bit- 16.7M | colors | |
Number of Pixels | 1920 x 540 | pixel | 32:9 |
Pixel Arrangement | RGB Vertical Stripe | ||
Display Mode | Normally Black | ||
Luminance of White | 400-700 | Cd/m2 | |
Drive Element | a-Si TFT active matrix | ||
Input | HDMI/VGA/DVI/USB | ||
Video Input | CVBS | ||
Control Mode | RS232/485 | ||
Network Function | Optional | ||
Power Consumption | 70W | ||
Power Supply | AC100-240V, 50/60Hz | ||
Brackets | Customize | ||
Weight | 5500g | ||
Operating Temperature | 0 to 50℃ | ||
Humidity | 10 to 80% | ||
Install Height | 3000m | ||
Working hours | 50000 hours |
Why XINSENYUE Bar Monitor?
XINSENYUE designs, creates, delivers and installs passenger information displays LED, RGB, TFT, LCD. Displays for Dynamic Passenger Information Systems
Our Bar LCD allows mass transit authorities to display real-time passenger and route information. Coupled with Engage,content-creating digital signage suite, LED or LCD monitors can display advertisements, facility maps, bus route line information display.
Passenger Information Display, Wholesale Various High Quality Passenger Information Display Products from XINSENYUE Passenger Information Display Suppliers and Passenger Information Display Factory,Importer,Exporter.
Product Photos

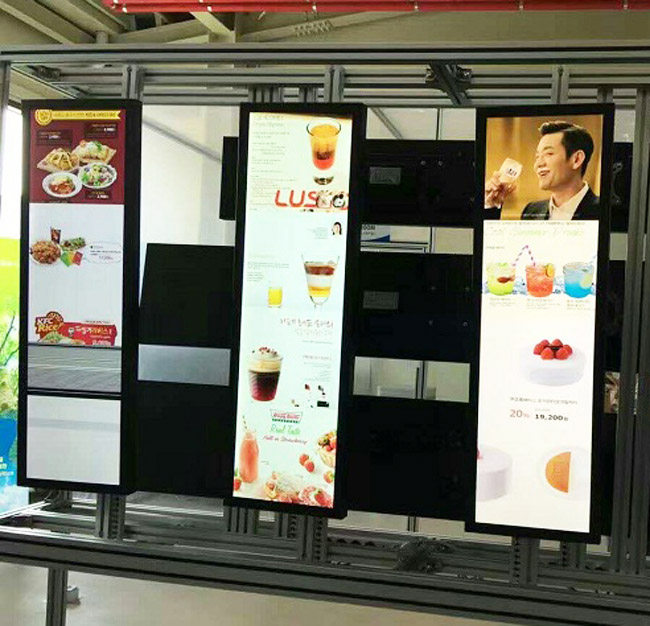

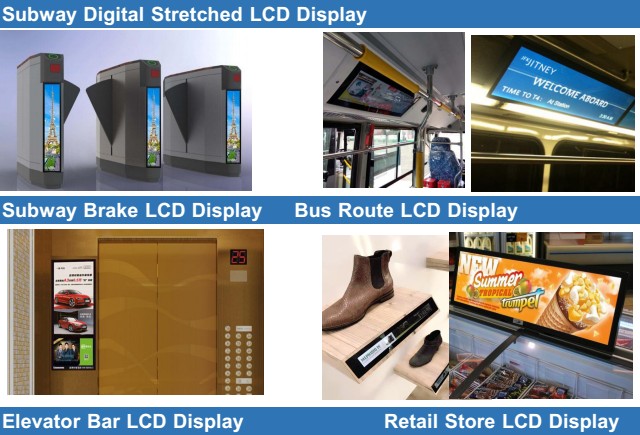

XINSENYUE FHD280 28 Inch Ultra Wide Stretch Bar Digital Signage Display works great for applications requiring a wider display, typically for airports, restaurants, public bus, train, subway, railway and other metros.
TFT-LCD based passenger information bus stop displays are a future-proof and easy to implement replacement for legacy systems and traditional paper timetables
